Antibody Internalization and Degradation Detection Techniques: Facilitating ADC Drug Development

Antibody-Drug Conjugates (ADCs) are hailed as "biological missiles." Their core design concept leverages the targeting ability of antibodies to deliver highly cytotoxic small molecule drugs (Payloads) precisely to the interior of tumor cells, thereby achieving potent cell killing while reducing systemic toxicity. However, for a successful ADC drug, its efficacy is far from a simple sum of "antibody" plus "toxin." The keys lie in the stability of the linker and whether the antibody can be efficiently internalized and subsequently degraded intracellularly to release the Payload.

Part 1: Why are Internalization and Degradation Detection So Crucial?

In the mechanism of action of ADCs, internalization and degradation are pivotal connecting steps:

• Internalization: After the ADC binds to the target antigen on the cell surface, it enters the cell via pathways such as clathrin-mediated endocytosis, forming endosomes.


• Degradation: Endosomes gradually acidify and mature into lysosomes. Within the lysosome, rich in proteases and an acidic environment, the antibody component is degraded, and cleavable linkers are broken, releasing the free payload, which then exerts its cytotoxic effect.



Part 2: Summary of Core Detection Technologies

Currently, various detection technologies for internalization and degradation are available, categorized and applied based on their detection principles and purposes.

1. Internalization Efficiency Detection Based on pH-Sensitive Dyes

• Principle: pH-sensitive dyes exhibit little to no fluorescence at neutral pH but show a significant increase in fluorescence intensity upon entering acidic intracellular compartments (pH < 6). After labeling antibodies with these reagents, the fluorescence intensity directly correlates with the degree of internalization.



• Advantages: Very low background signal, high sensitivity, particularly suitable for High-Throughput Screening (HTS).



• Application: Primary screening of large antibody libraries in 96 or 384-well plate formats.

*Signal appears before the environmental pH reaches the pKa.

Ready-to-Use Reagents:

• High Sensitivity: pH-sensitive IgG labeling reagents rapidly and quantitatively bind to the Fc region of the target primary antibody, forming a pre-complex. The pH-sensitive dye is already covalently attached to the reagent. This allows labeling of nearly any source of IgG primary antibody without tedious chemical conjugation, greatly broadening application scope and saving time.


• Easy Operation: Incubate reagent with antibody for 10-20 min → Incubate complex with cells → Analyze by flow cytometry.



• Low Background: Non-internalized antibodies do not fluoresce, effectively avoiding interference from membrane-bound antibodies on the internalization signal.



Dyes:

• Universal for Antibodies & Proteins: Any protein containing primary amines on lysine residues or thiol groups on cysteine residues can be conjugated with the dye.



• Broad Applications: Flow Cytometry, Fluorescence Microscopy, Fluorescence Imaging Systems, and High-Content Screening (HCS).

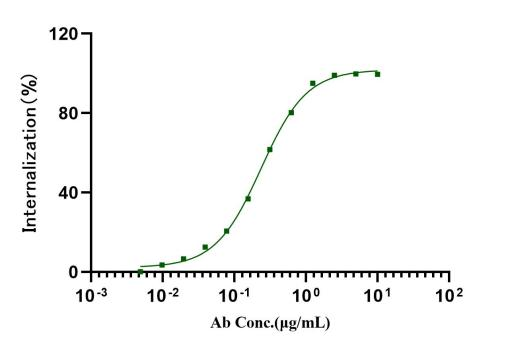

Validation Data: (Note: Placeholder for data images/charts would be inserted here in the original document)

• Green Fluorescence



• Red Fluorescence



• Deep Red Fluorescence



2. Internalization Efficiency Detection Based on Cell Killing - DT3C Recombinant Protein

DT3C is a recombinantly expressed fusion protein with high affinity for the antibody Fc region. Upon antibody internalization, the bound DT3C molecule enters the cell. DT3C releases the toxic DT fragment, which inhibits protein synthesis, ultimately leading to cell death. By detecting cell viability or cell death using methods like MTT, WST-1, or the UA-Glo Cell Viability Assay Kit (UA070103), the internalization efficiency of the antibody can be evaluated.

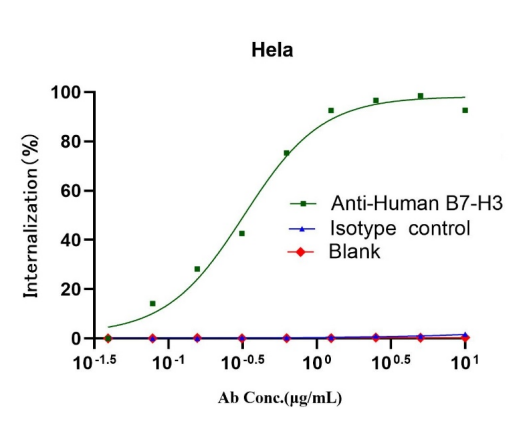

Data Presentation: (Note: Placeholder for data images/charts would be inserted here in the original document)

3. Degradation and Payload Release Detection Technologies

1) Liquid Chromatography-Mass Spectrometry/Mass Spectrometry (LC-MS/MS)

• Principle: Considered the gold standard method. It directly quantifies the absolute amount of free small molecule payload and its metabolites released in cell lysates using highly sensitive mass spectrometry.


• Advantages: Extremely high sensitivity (can reach picomolar or even femtomolar levels), allows simultaneous qualitative and quantitative analysis, provides the most direct evidence of payload release.

• Application: ADC efficacy evaluation, linker stability testing, metabolic kinetics studies.



2) Immunoblotting (Western Blot) and Immunoprecipitation (IP)

• Principle: Utilizes specific antibodies against the antibody Fc region, idiotype, or payload to detect ADC degradation fragments or released payload in cell lysates.



• Advantages: Provides molecular weight information of degradation products, high specificity.



• Disadvantages: Semi-quantitative, labor-intensive, low throughput.



3) Reporter Gene Assay

• Principle: Engineered cell lines are constructed where the payload-induced cell killing effect negatively correlates with the activity of a reporter gene (e.g., Luciferase). More payload release leads to lower cell viability and weaker reporter signal.



• Advantages: Functionally reflects the overall biological effect of the payload, high throughput.



• Disadvantages: Indirect detection, susceptible to interference from other factors.



Related Product Recommendations:

Anti-payload Antibodies

Partial Validation Data: (Note: Placeholder for data images/charts would be inserted here)

Reporter Gene Assay Kits

Part 3: Technology Integration and Future Perspectives

In practical ADC development projects, reliance on a single technology is uncommon. Instead, multiple technologies are typically used in combination to validate each other. For example:

• Primary Screening Stage: Use pH-sensitive dyes or flow cytometry for high-throughput internalization screening.


• Mechanism Verification: Employ confocal microscopy to observe the internalization pathway and lysosomal co-localization.



• Ultimate Verification: Apply the LC-MS/MS gold standard method to accurately quantify the amount and kinetics of payload release.



Antibody internalization and degradation are the crucial gateways for ADC drugs to exert their "precision killing" effect. A mature, comprehensive, and continuously innovative detection technology system for internalization and degradation equips ADC researchers with "penetrating insight," allowing them to see through the cell membrane and observe the intricate internal workings. Through a profound understanding and precise quantification of these key processes, researchers can more efficiently screen for the best drug candidates, optimize linker technology, and ultimately accelerate the development of safer and more effective ADC therapies, benefiting cancer patients worldwide.
